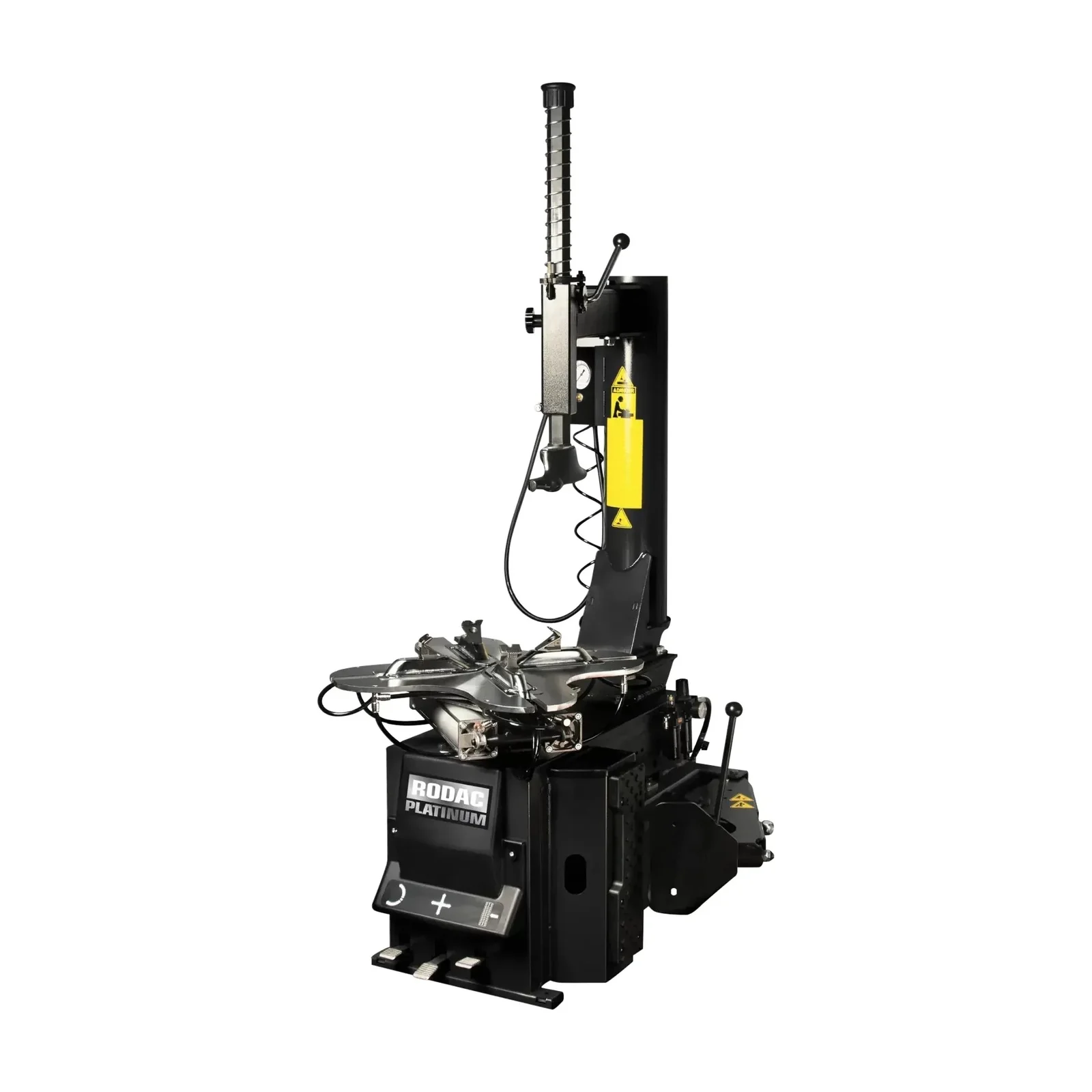

Swing Arm Tire Changer 2-Speed for 10" to 26" Wheels – RD21
Swing Arm Tire Changer 2-Speed for 10" to 26" Wheels – RD21

Swing Arm Tire Changer 2-Speed for 10" to 26" Wheels – RD21

SKU RD21 STOCK 8 Items
Rodac Platinum
Regular price: $5,899.95
Reduced price: $5,299.95
DELIVERY IN 2 TO 5 BUSINESS DAYS
ADD TO CART

Custom manufacturing Non-exchangeable non-refundable

How to Measure Your Axle

Equip your shop with a professional Rodac Platinum tire changer built with 90% Italian components. Two-speed swing arm machine for 10" to 26" car wheels, with a 30,800 N double-acting bead breaker, plastic head and pedal-operated inflation. 5-year motor and transmission warranty, 110 V power.

  • GOOGLE TOP QUALITY SHOP GOOGLE TOP QUALITY SHOP
  • PROUDLY CANADIAN PROUDLY CANADIAN
  • FREE DELIVERY OVER 150$ FREE DELIVERY OVER 150$

Rodac Platinum

RD21 swing arm tire changer


90% Italian components

2 rotation speeds 5-year motor and transmission warranty

The RD21 mounts and demounts car tires on 10" to 26" wheels, with outside rim clamping from 10" to 24" and inside clamping from 12" to 26". Its plastic head suits standard and low-profile tires alike.

The double-acting bead breaker, with its 200 mm aluminum cylinder, pushes with 30,800 N of force at 10 bar. Two rotation speeds, from 7 to 14 RPM, let you choose between precision and speed.

Pedal-operated inflation, preset to 3.5 bar (50 PSI), comes standard so you can finish the tire without changing stations. The reinforced chassis and 14 mm thick table are built for the pace of a shop in the middle of tire season.

Specifications

Outside rim clamping10" to 24"
Inside rim clamping12" to 26"
Maximum tire diameter43"
Maximum tire width15"
Bead breaker force at 10 bar30,800 N
Bead breaker cylinderØ 200 mm, aluminum, double acting
Sliding horizontal armØ 41 mm control arm
Operating pressure10 bar (145 PSI)
Preset inflation pressure3.5 bar (50 PSI)
Rotation speed7 to 14 RPM, 2 speeds
Motor power0.90 kW
Power supply110 V, single phase
Table thickness14 mm
Net weight300 kg (661 lb)
Maximum overall dimensions1420 x 1740 x 2010 mm
WarrantyMotor and transmission: 5 years

Available as options

  • Swing arm with double PA ECO assist arms (RDG9236722), to make mounting low-profile and UHP run-flat tires easier, available in our store
  • Plastic jaw protectors (RD21-PM)

Jaw protectors can be ordered by phone at 450 994-1199.
