Electronic 3D Digital Wheel Balancer with Video Display, Laser Line and LED Light – RODAC Platinum RD46
Electronic 3D Digital Wheel Balancer with Video Display, Laser Line and LED Light – RODAC Platinum RD46

Electronic 3D Digital Wheel Balancer with Video Display, Laser Line and LED Light – RODAC Platinum RD46

SKU RD46 STOCK 8 Items
Rodac Platinum
Regular price: $6,249.95
Reduced price: $5,649.95
DELIVERY IN 2 TO 5 BUSINESS DAYS
ADD TO CART

Custom manufacturing Non-exchangeable non-refundable

How to Measure Your Axle

Balance your wheels accurately with the Rodac Platinum 3D digital wheel balancer, built with 90% Italian components. 19" HD display, laser line, LED light and automatic diameter and distance measurement, for wheels up to 75 kg on 10" to 30" rims. Comes with wheel guard, cones, quick-clamp nut, width gauge and weight pliers.

  • GOOGLE TOP QUALITY SHOP GOOGLE TOP QUALITY SHOP
  • PROUDLY CANADIAN PROUDLY CANADIAN
  • FREE DELIVERY OVER 150$ FREE DELIVERY OVER 150$

Rodac Platinum

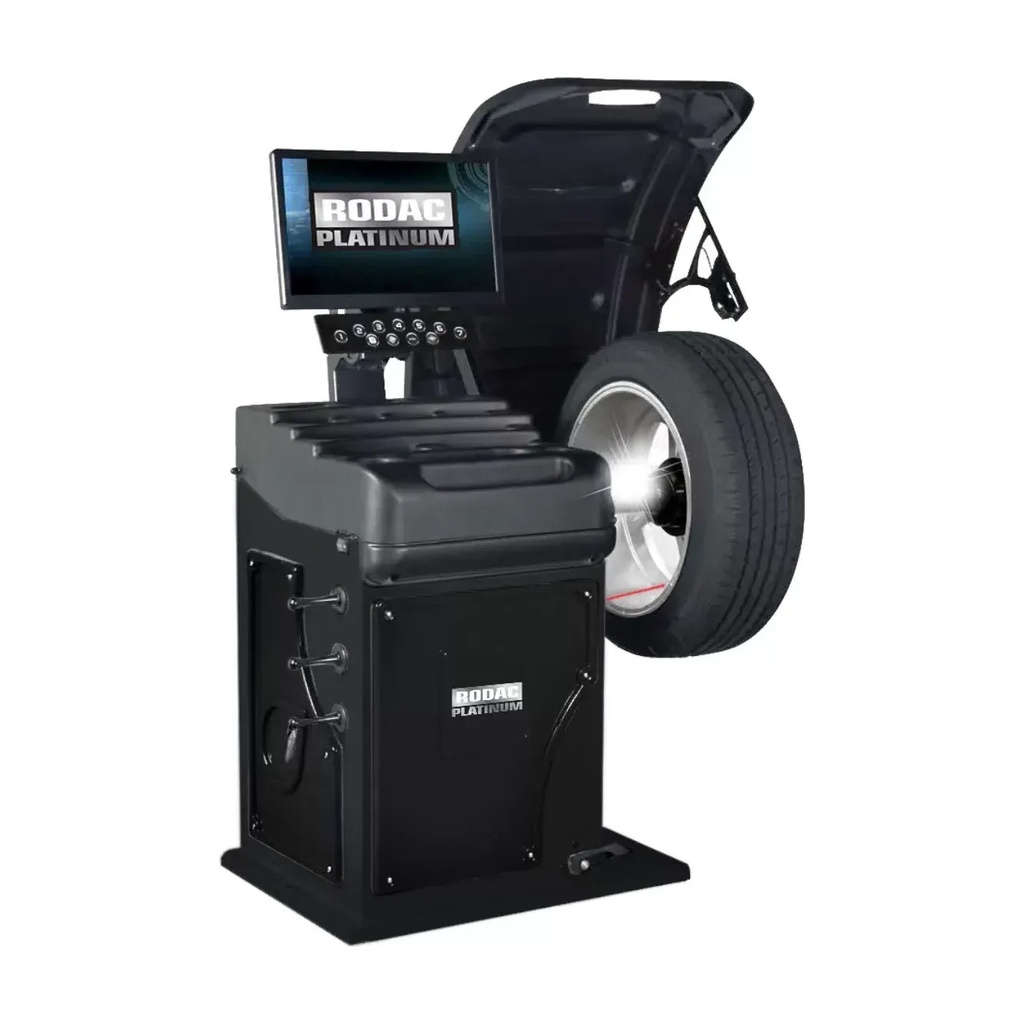

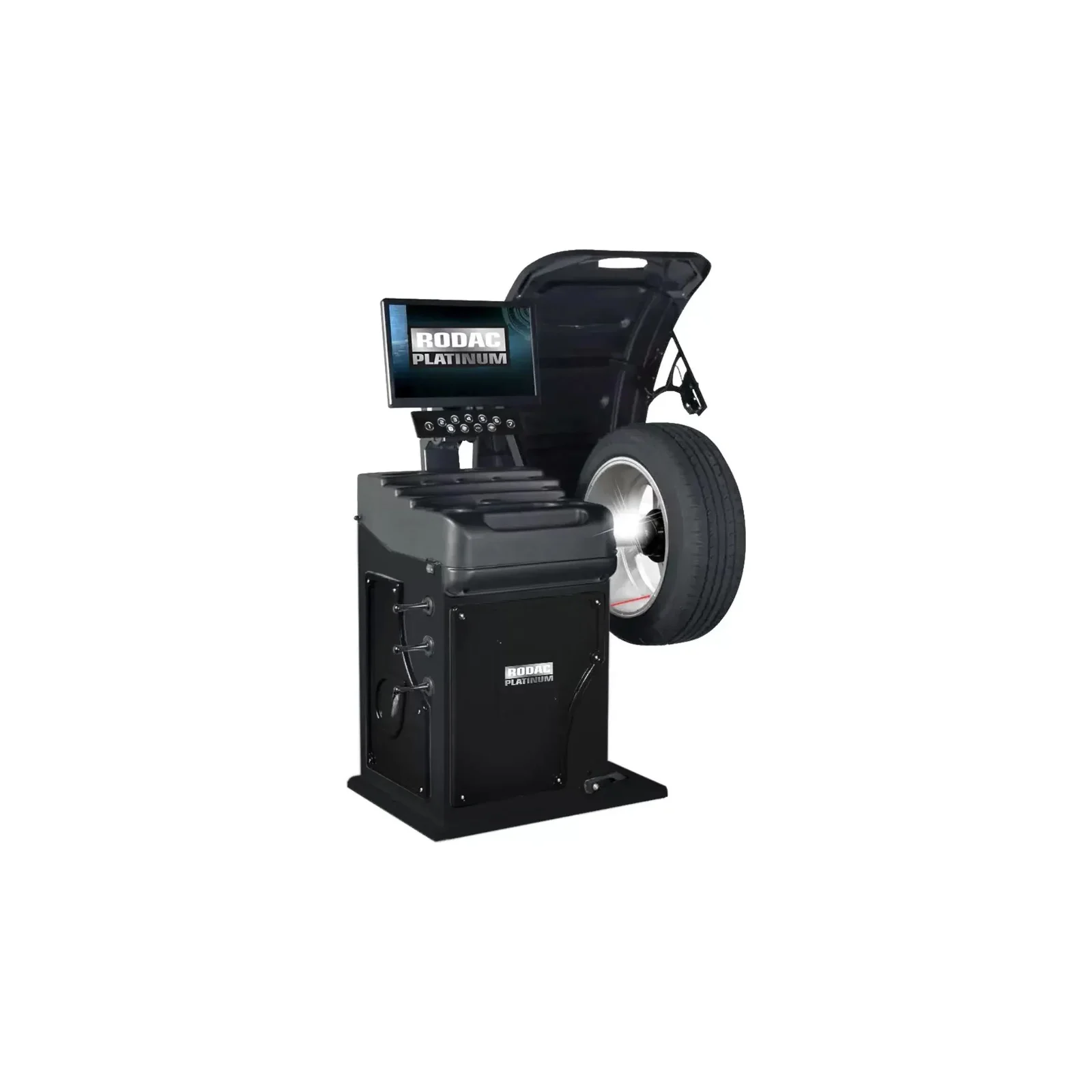

RD46 3D digital wheel balancer


90% Italian components

19" HD display Laser line and LED light

The RD46 measures wheel diameter and distance automatically, then starts and stops on its own. It detects imbalance in 4.7 seconds on a 14" wheel weighing 15 kg and balances in static or dynamic mode.

Its 19" HD TFT color monitor and easy-to-use software display every reading clearly, with a static imbalance optimization function. The clip system makes applying stick-on weights easier, and the pedal brake holds the wheel still while you work.

It accepts wheels up to 75 kg and 1100 mm in diameter, on rims from 10" to 30" in diameter and 1.5" to 20" wide. The USB port is used to update the firmware, and self-diagnosis with self-calibration helps keep readings accurate.

Specifications

Maximum wheel weight75 kg
Maximum wheel diameter1100 mm
Rim diameter10" to 30" (255 to 765 mm)
Rim width1.5" to 20" (40 to 510 mm)
Imbalance detection time4.7 s (5 3/4" x 14" wheel, 15 kg)
Balancing speedUnder 150 RPM
Display19" HD TFT color monitor
UpdatesUSB port for firmware
Power supply110 V, single phase, 60 Hz
Net weight with guard102 kg (225 lb)
Maximum overall dimensions1350 x 1150 x 1440 to 1540 mm
Warranty1 year, parts and repair

Included accessories

  • Wheel guard
  • Manual gauge to measure rim width
  • Cones and quick-clamp ring nut
  • Weight pliers

Available as options

  • Automatic wheel width measurement by sonar (LA)
  • RD46-QR quick-release nut

Options can be ordered by phone at 450 994-1199.
